20001 - 50000 Litres Stainless Steel Storage Vessel

!

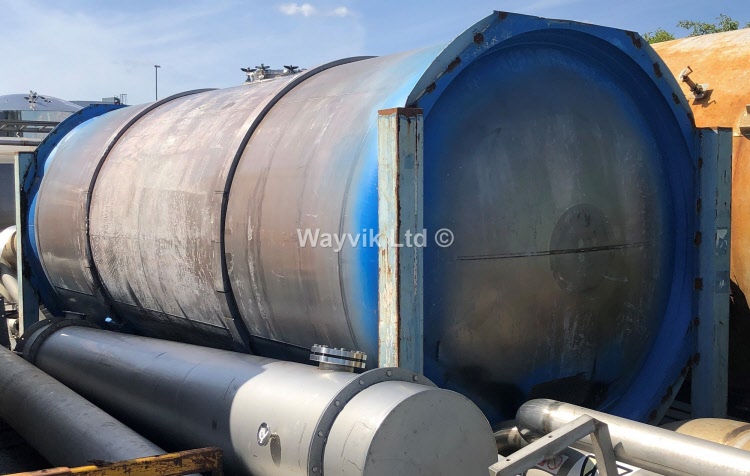

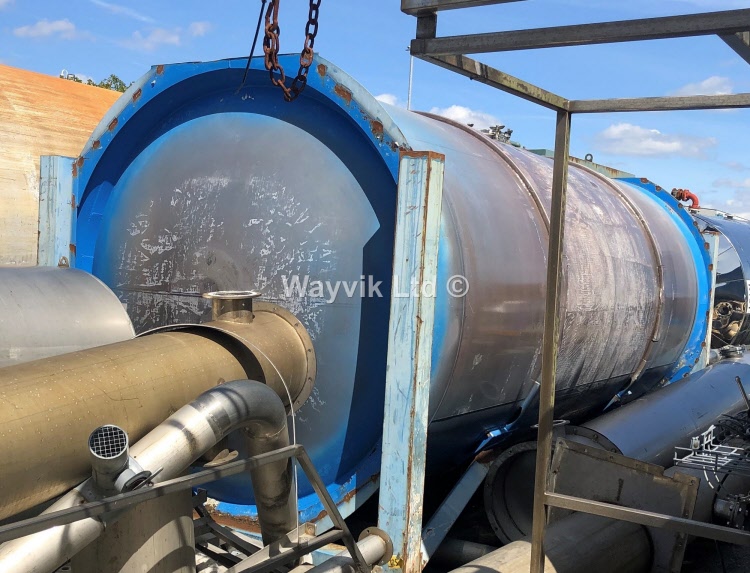

24000 Litre Stainless Steel Horizontal Storage Vessel

2280mm diameter x 6096mm long overall with welded dished ends. Mounted in a mild steel box section support frame 20'-0" long x 8'-0" wide. Operating pressure: 4 barg Maximum temperature: 120 Celsius.

25100 Litres Vertical Stainless Steel Storage Vessel

2700mm diameter x 4450mm deep on straight. Cone top. Flat sloping base. Top and side manholes with covers

35700 Litres Vertical Stainless Steel Storage Vessel

3000mm diameter x 4620mm deep on straight side with 660mm deep top and bottom dished ends. Side manhole and bolted cover. Mounted on four tubular mild steel legs.

41000 Litres Vertical Stainless Steel 316 Storage Vessel

2810mm diameter x 6450mm deep on straight with 200mm deep dished top and bottom. Mounted on four mild steel “I - beam” legs. Side manhole and cover.

49600 Litres Stainless Steel 321 Vertical Storage Vessel

4.2m dia x 3.58m deep on straight. Shallow cone top. Flat base with radiused corners. Mounted on mild steel support beams
