1- 1000 Litres Stainless Steel Mixing Vessels

!

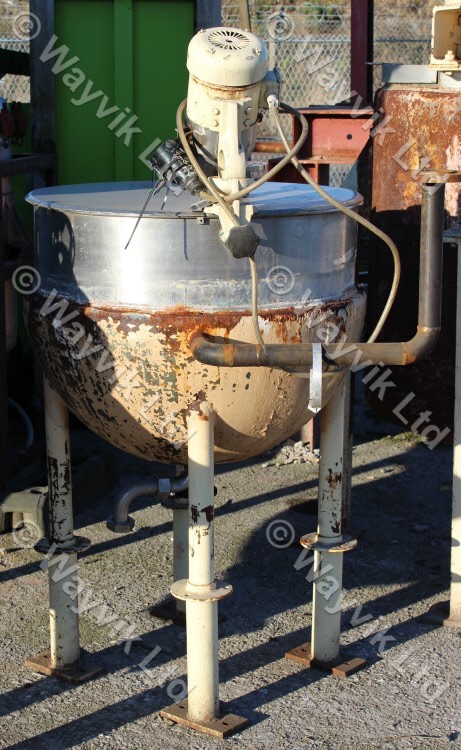

110 Litres Stainless Steel Open Top Hemispherical Jacketed Mixing Vessel

Giusti
REF:VESSMIXSS0131

800mm dia x 230mm deep on straight side. Loose flat top. 400mm deep hemispherical dished base. 0.37kW GREAVES PDD clamp on agitator. 80 psig working pressure mild steel jacket. Manufactured by Giusti.

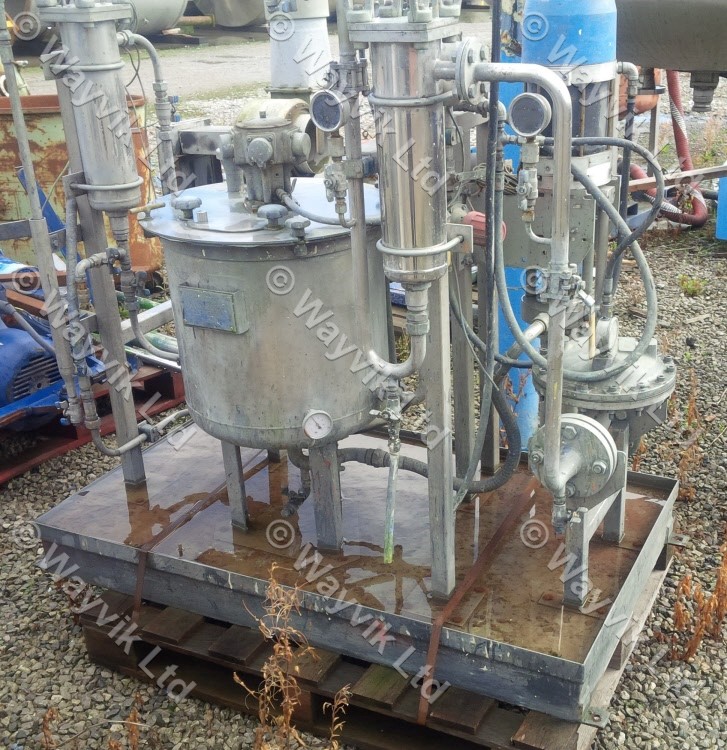

176 Litres Stainless Steel Mixing Vessel

Morecheck
REF:VESSMIXSS0138

460mm dia x 420mm deep on straight side. Fully welded 90mm deep dished base. Bolted flat top. Top centre mounted pneumatically driven two stage turbine agitator. Skid mounted with pneumatic pumps and in-line filters. Manufactured by Morecheck Limited

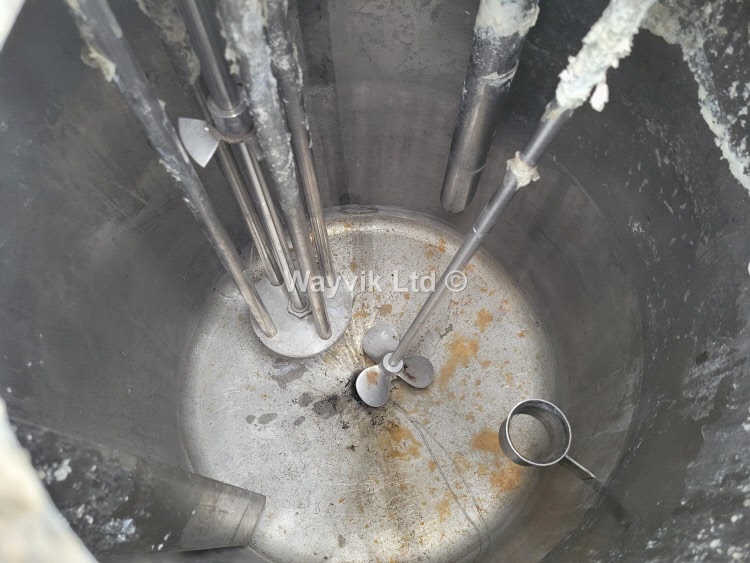

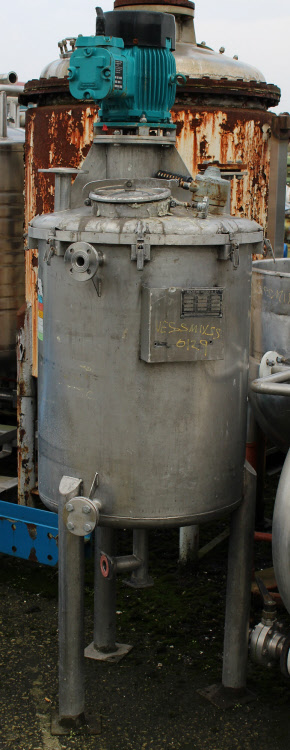

250 Litre Stainless Steel Mixing Vessel 640mm Dia x 800mm Deep

REF:VESSMIXSS0129
4kW 2890-rpm 415/3/50 EExd IIB T4 high shear mixer plus air drive 3-blade marine blade propeller agitator.

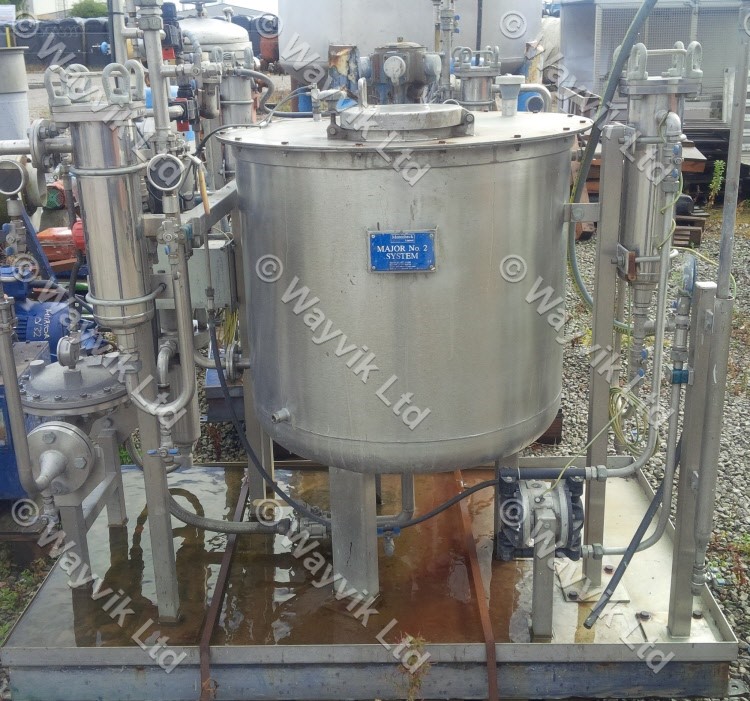

335 Litres Stainless Steel Mixing Vessel

Morecheck
REF:VESSMIXSS0137

760mm dia x 640mm deep on straight side. Fully welded 150mm deep dished base. Bolted flat top. Top centre mounted pneumatically driven two stage turbine agitator. Skid mounted with pneumatic pumps and in-line filters. Manufactured by Morecheck Limited

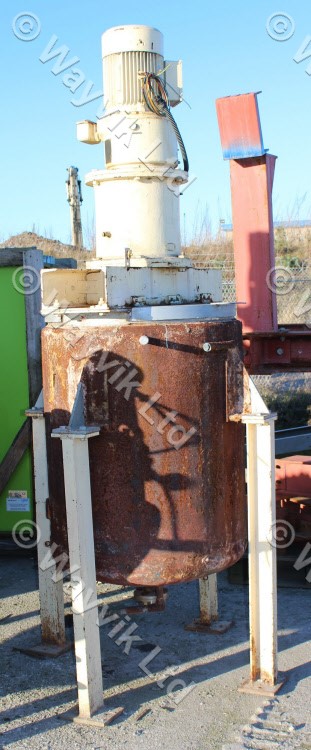

500 Litres Stainless Steel Jacketed Mixing Vessel

REF:VESSMIXSS0130
770mm dia x 950mm deep on straight side. Open top with hinged covers. 170mm deep bottom dish Top centre mounted agitator. 3.7 / 1.58kW two speed 1440 / 720-rpm 415/3/50 motor with reduction gearbox. Output shaft speeds 85 / 42.5 rpm. 3 barg mild steel jacket.

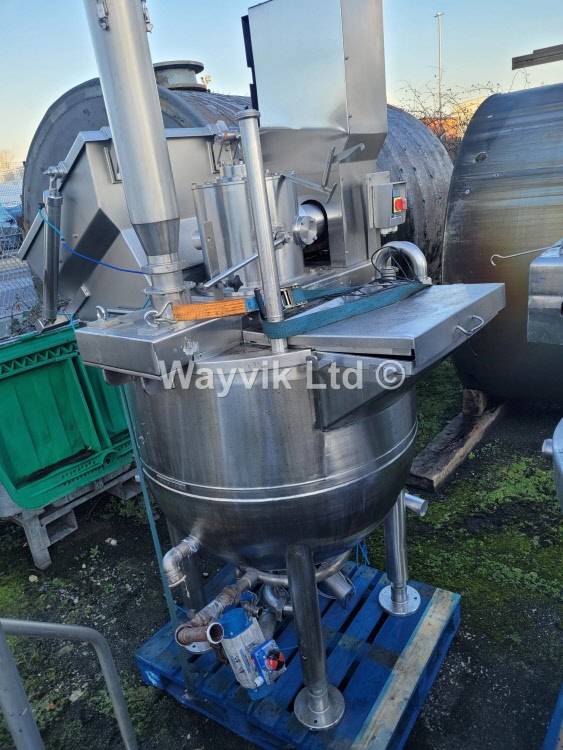

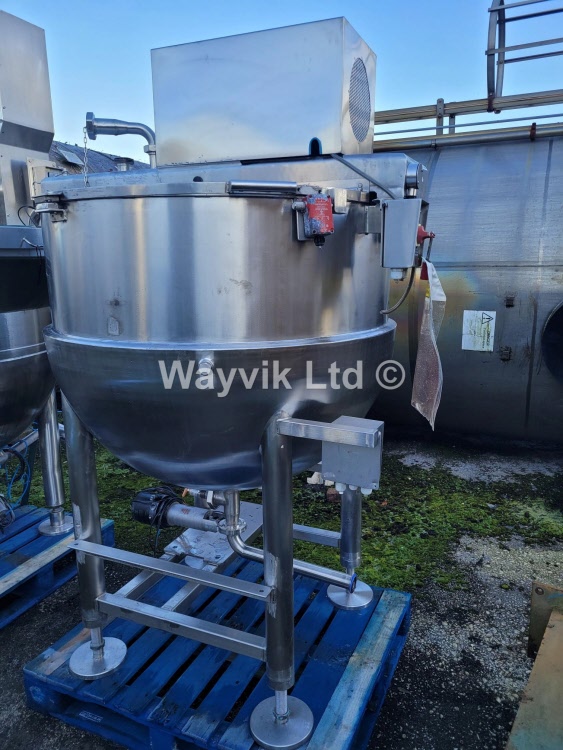

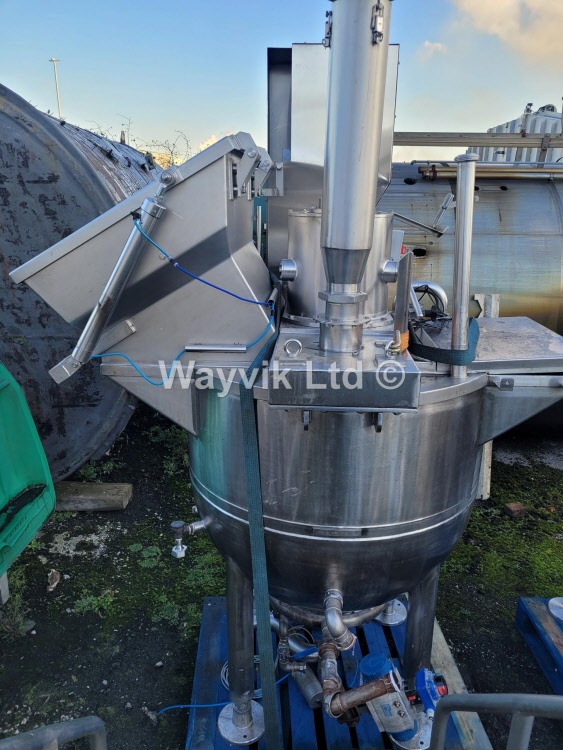

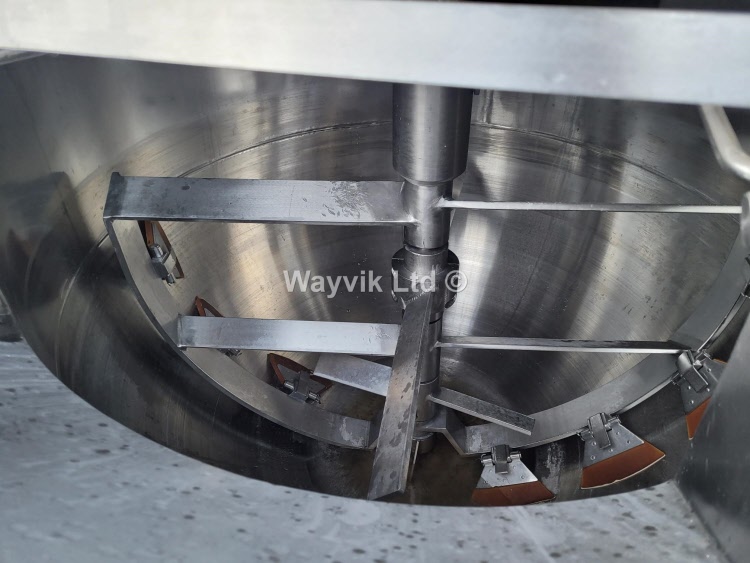

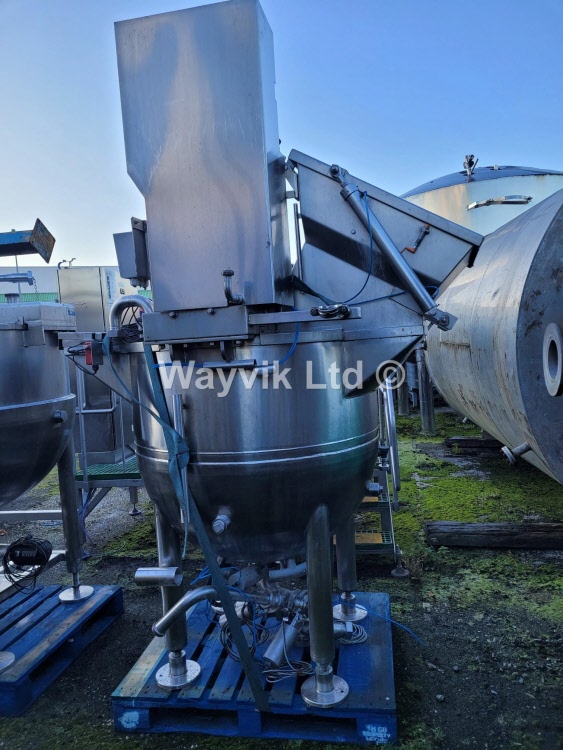

580 Litres Stainless Steel Hemispherical Mixing Pan

REF:VESSMIXSS0171

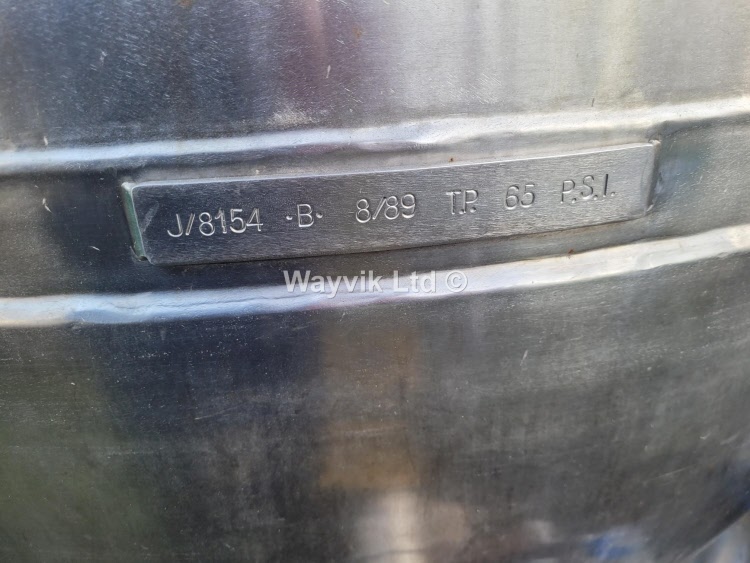

940mm dia x 998mm deep overall. Side wall scraping gate type agitator with reduction gearbox drive. Hinged top access cover plus pneumatically actuated hopper dump chute. Bottom centre outlet. Jacket rated for 65 psi test pressure.

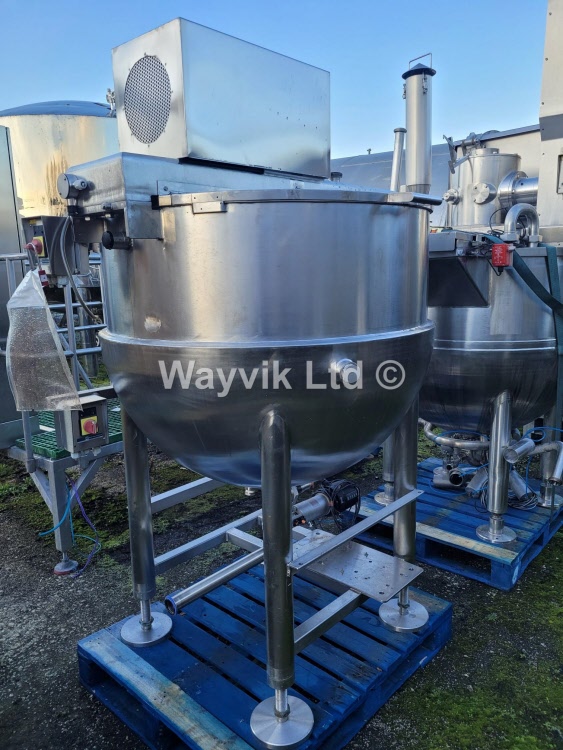

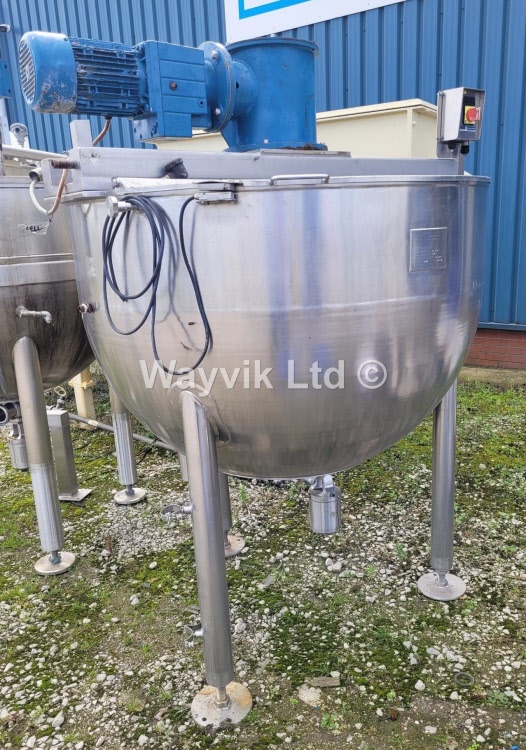

745 Litres Stainless Steel Hemispherical Jacketed Mixing Pan

REF:VESSMIXSS0167

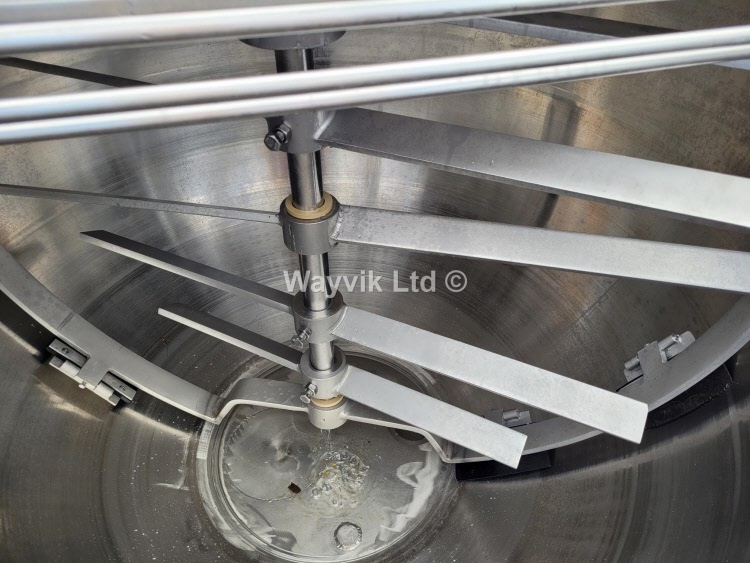

Side wall scraping gate style agitator with three adjustable static swirl breakers. 3kW 415/3/50 drive motor with reduction gearbox. Estimated shaft output speed 15-rpm. Jacket rated for 98 psig test pressure / 60 psig working pressure. 153 Celsius Design Temperature. Ex-food application.

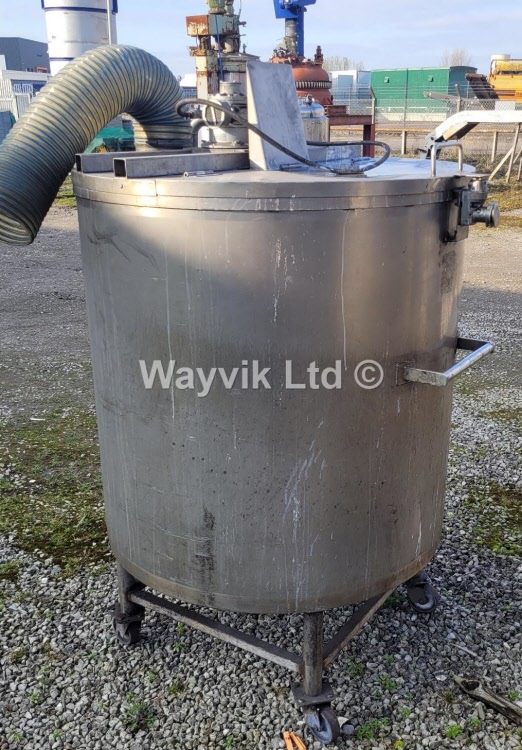

760 Litre Stainless Steel Mixing Vessel ATEX Air Drive

REF:VESSMIXSS0166

985mm dia x 1000mm deep. Flat top with hinged access hatch. Shallow cone base. ATEX rated air drive and three blade marine type propeller.

Mounted on mobile base

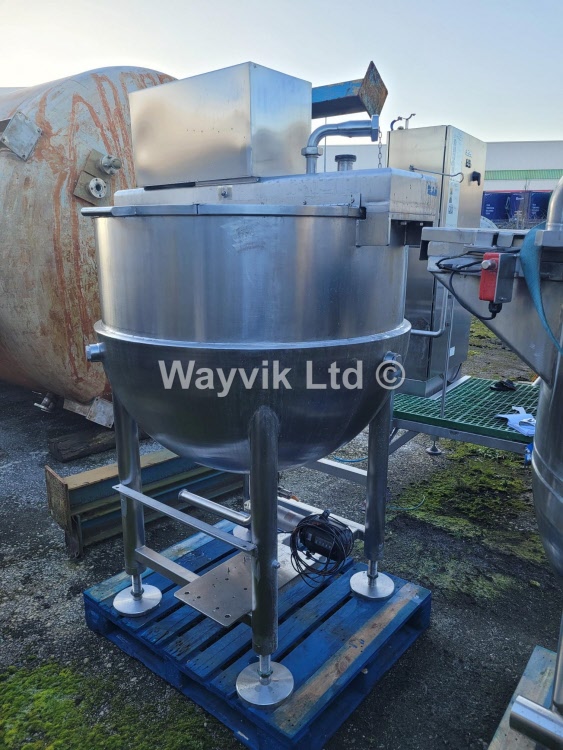

775 Litres Stainless Steel Hemispherical Mixing Pan

REF:VESSMIXSS0170
1140mm dia x 950mm deep overall. Side wall scraping gate style agitator with reduction gearbox drive. Hinged top access covers and bottom centre outlet.

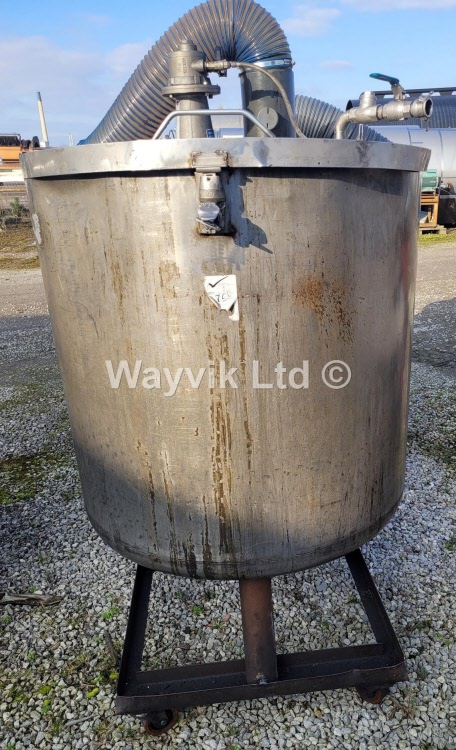

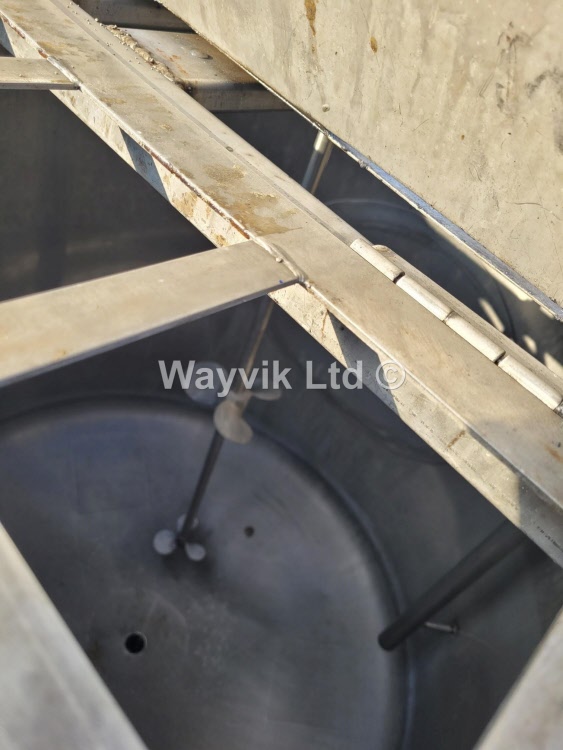

780 Litres Stainless Steel Mixing Vessel Air Drive

REF:VESSMIXSS0165

995mm dia x 920mm deep. Flat top with hinged access hatch. Dished base. Fitted with air drive and twin three blade marine type propellers. Mobile base.

900 Litres Stainless Steel Mixing Vessel

REF:VESSMIXSS0048
900mm dia x 1300mm deep on straight. 450mm deep cone base. Top centre mounted agitator.

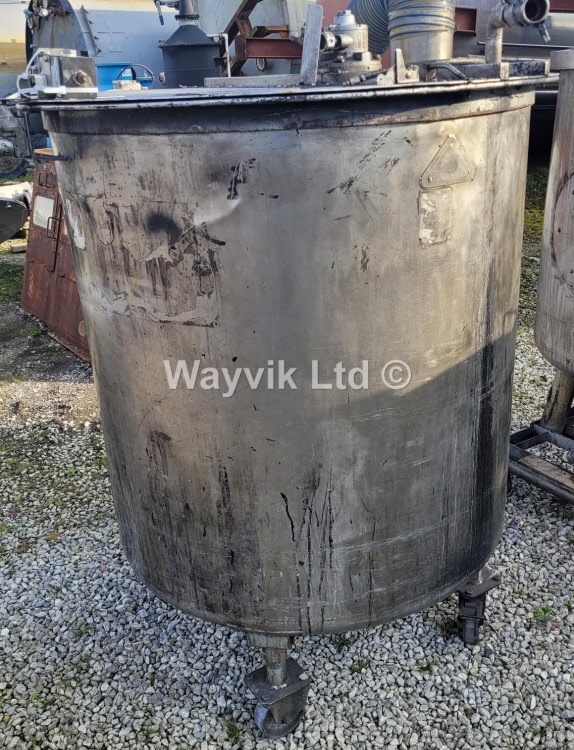

900 Litres Stainless Steel Mixing Vessel ATEX Air Drive

REF:VESSMIXSS0164
074mm dia x 1100mm deep. Flat top with hinged access hatch. Dished base. ATEX rated air drive and three blade marine type propeller. Mounted on mobile base.

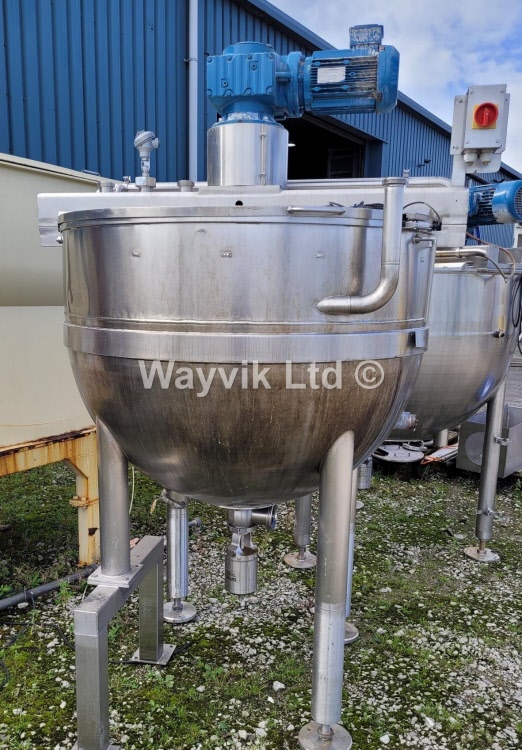

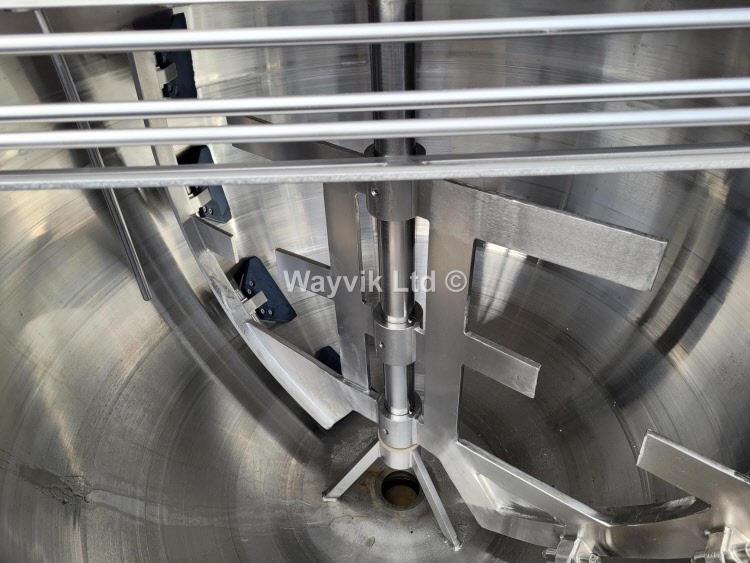

960 Litres Stainless Steel Hemispherical Jacketed Mixing Pan

REF:VESSMIXSS0168
Side wall scraping gate style agitator. 3kW 415/3/50 drive motor with reduction gearbox. Shaft output speed 15-rpm. Jacket rated for 8.6 barg test pressure / 5.5 barg working pressure. 162 Celsius Design Temperature. Ex-food application
