1001- 5000 Litres Stainless Steel Mixing Vessels

!

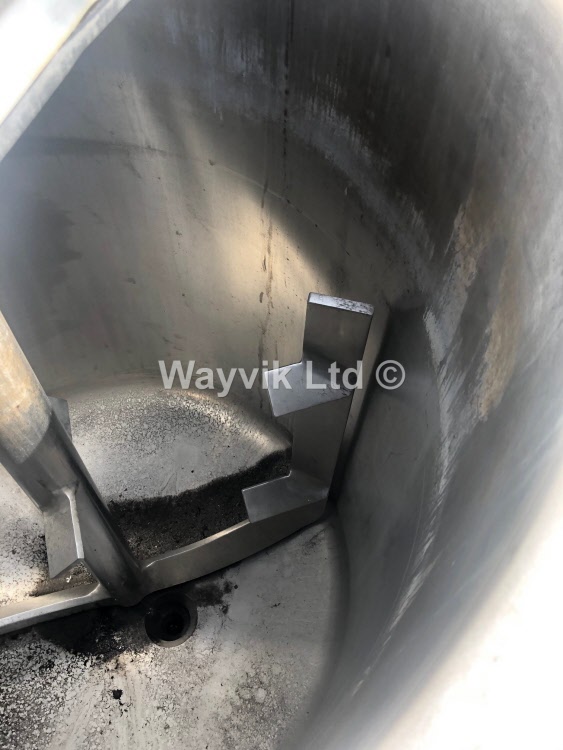

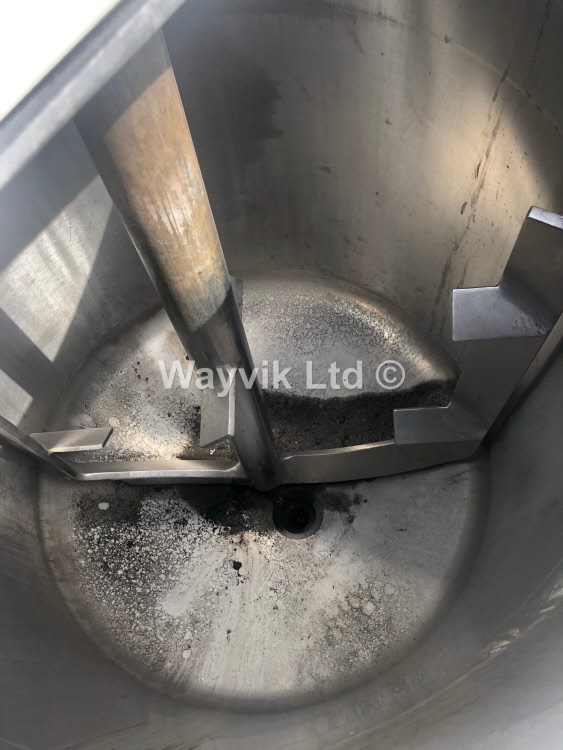

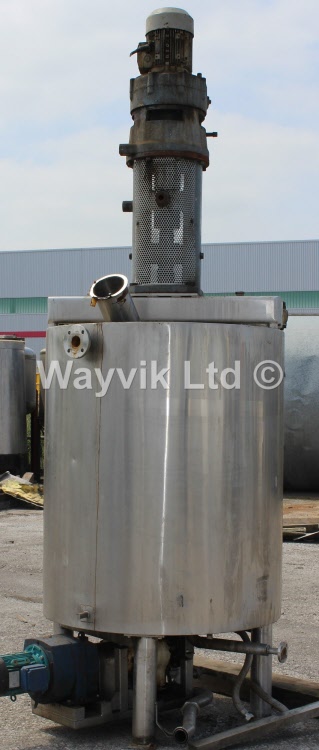

1320 Litres Stainless Steel Jacketed Mixing Vessel

REF: VESSMIXSS0152

1090mm dia x 1290mm deep on straight. : Fully welded dished base 160mm deep. Flat top with hinged access / charging segment. Top centre mounted anchor pattern agitator. 7.5kW 415/3/50  motor. Gearbox reduction ratio 1450:21.5 rpm. Fully welded, insulated and stainless steel clad. 2 barg maximum working pressure @ 100 Celsius. Ex-food application.

1800 Stainless Steel Jacketed Paste / Creams Mixing Vessel

REF:VESSMIXSS0086
1260mm dia x 1030mm deep on straight. 1270mm deep cone base. Gate type agitator running at close tolerance to the vessel walls with bottom footstep bearing and screw type discharge. 2.2 kW 415/3/50 motor. Estimated output shaft speed 20 -rpm. External stainless steel temperature control jacket to sides and base cone.Ex-pharmaceutical.

Netzsch Mastermix PMD 3000 Litre Stainless Steel

Netzsch
REF:VESSMIXSS0120

1.45m dia x 1.55m deep on straight plus 1.25m deep truncated cone base.  7.5kW geared motor main drive. 10 rpm output speed.

37kW 1470-rpm direct driven saw tooth dispersion mixer Hydraulic height adjustment with 4kW power pack.

4800 Litres Stainless Steel Mixing Vessel With High Shear Mixer

REF:VESSMIXSS0140
1620mm dia x 2370mm deep on straight. Flat top with segment hinged section. Flat sloping base. Estimated 15kW high shear homogeniser type mixer with approximately 1560mm long shaft
