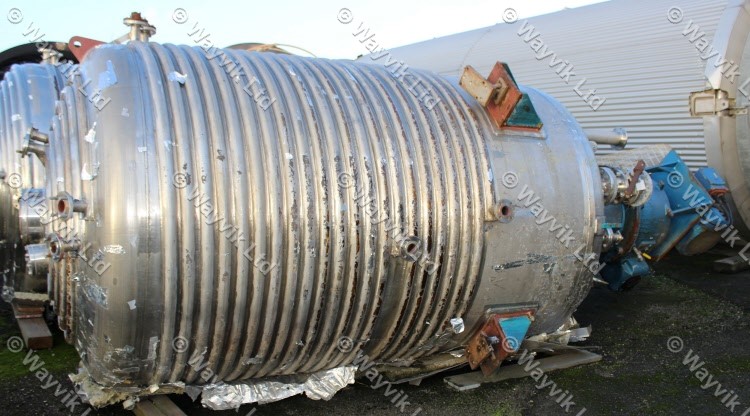

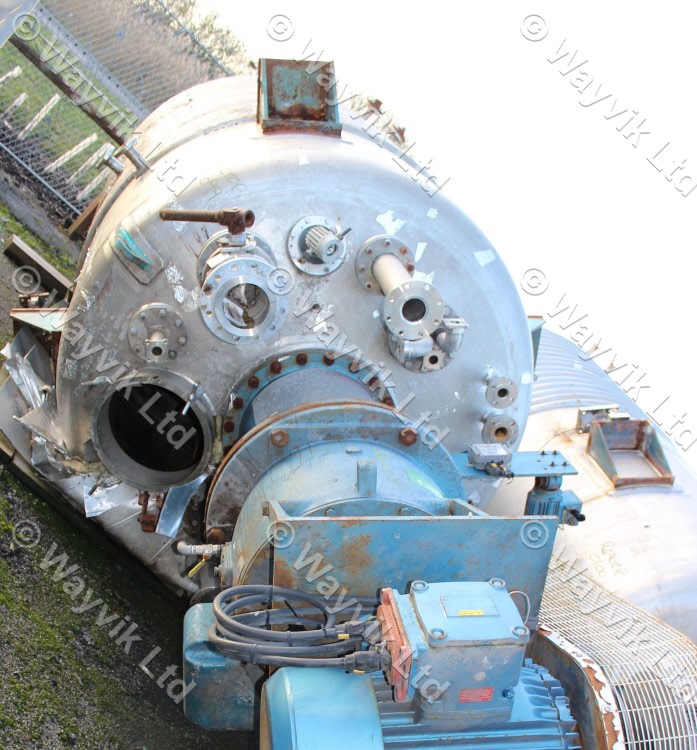

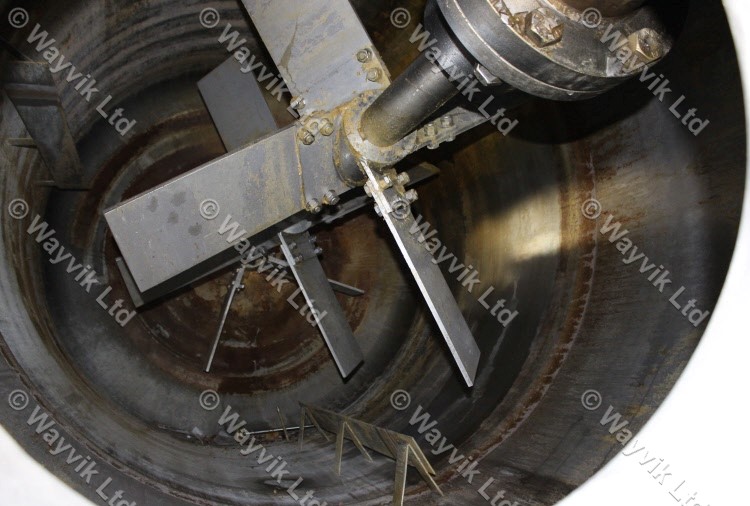

2140mm dia x 3060mm deep on straight with welded top and bottom dishes. External limpet coils to shell and base. Curtis Mixers model CM-5065-4220-A 9-97 stainless steel 3 stage agitator with 55kW EExdIIB T4 drive and reduction gearbox. Internally rated 3.6 barg / full vacuum. Limpet coils rated 5.5 barg.
